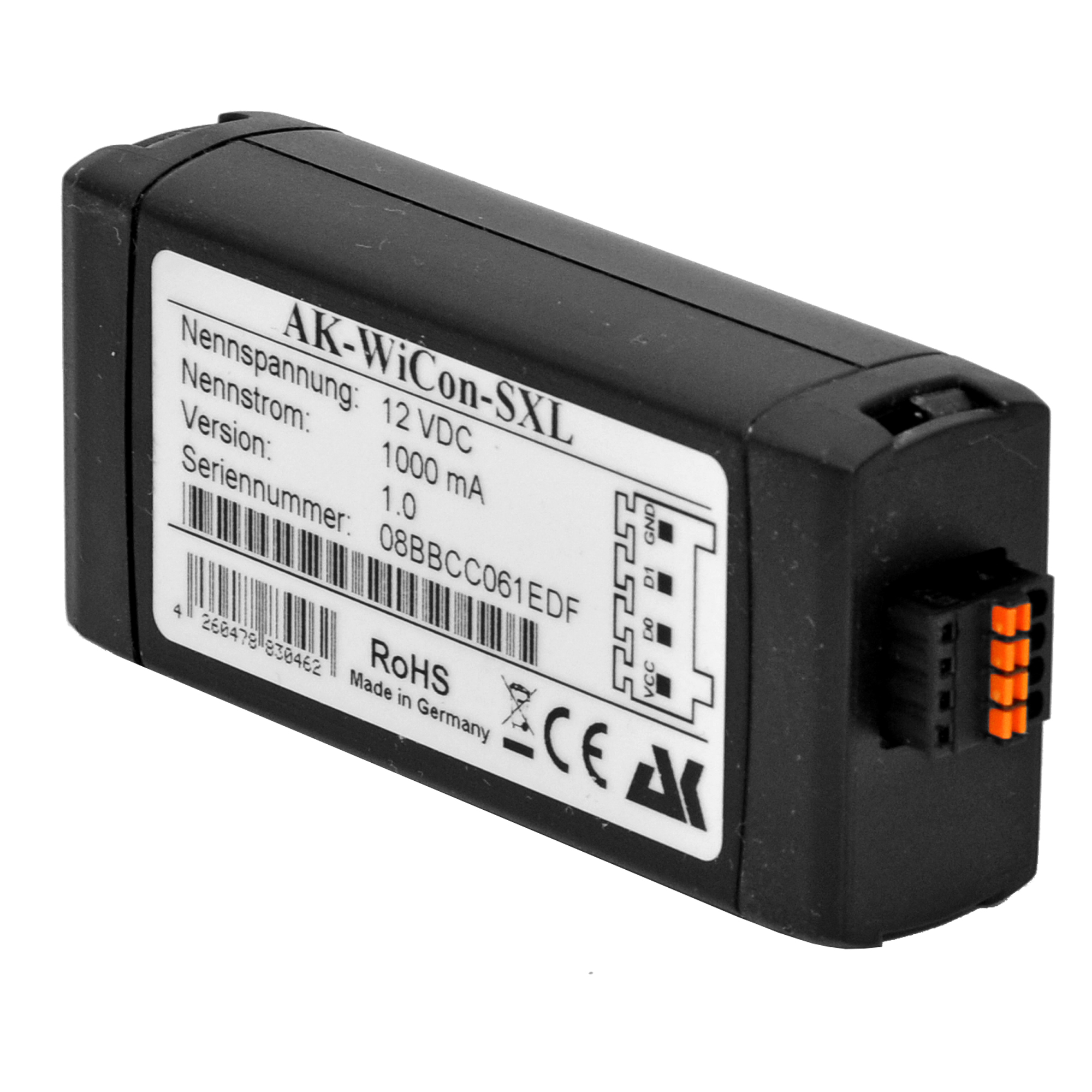

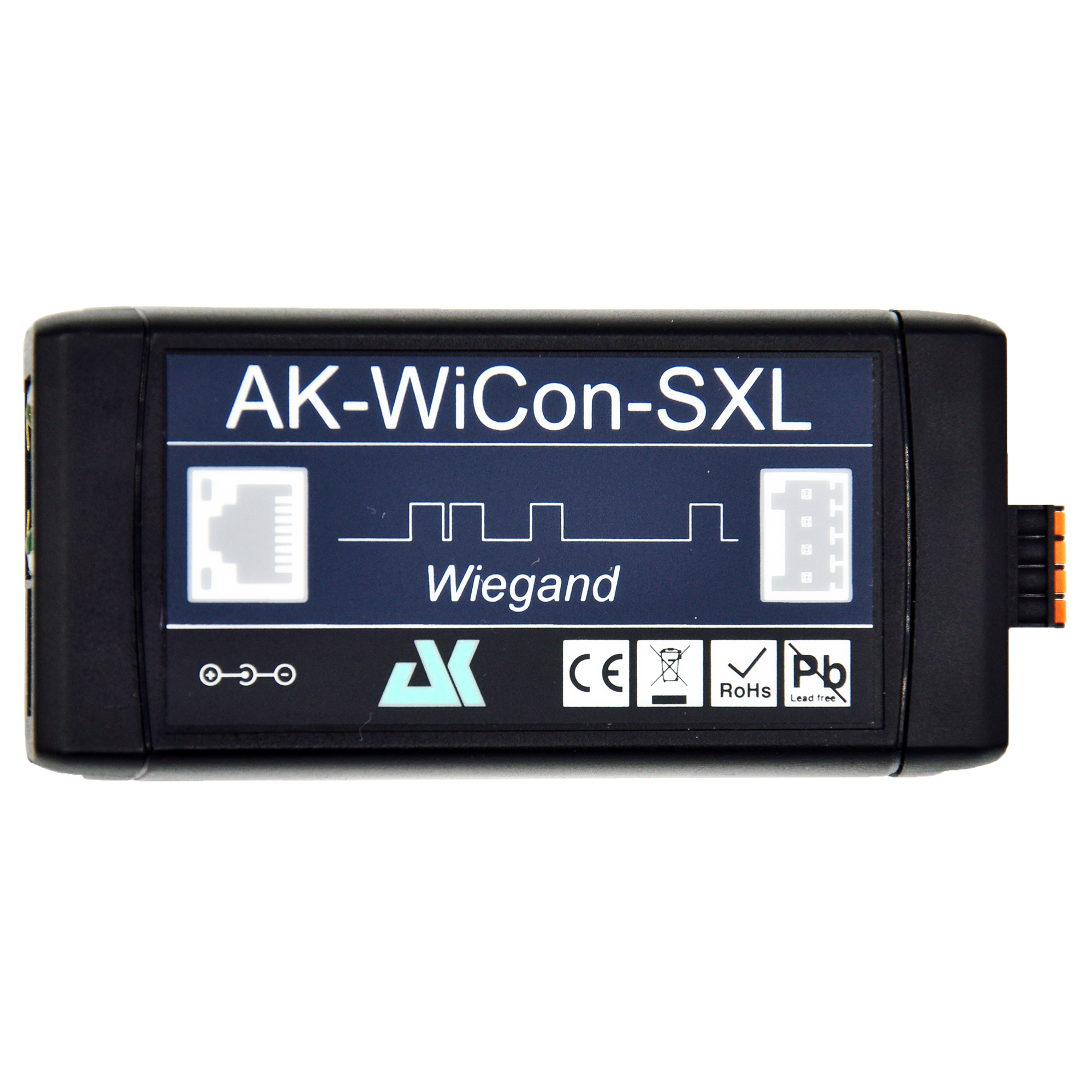

AK-WiCon SXL Wiegand Converter

Wiegand device server for integration of Wiegand devices into a network

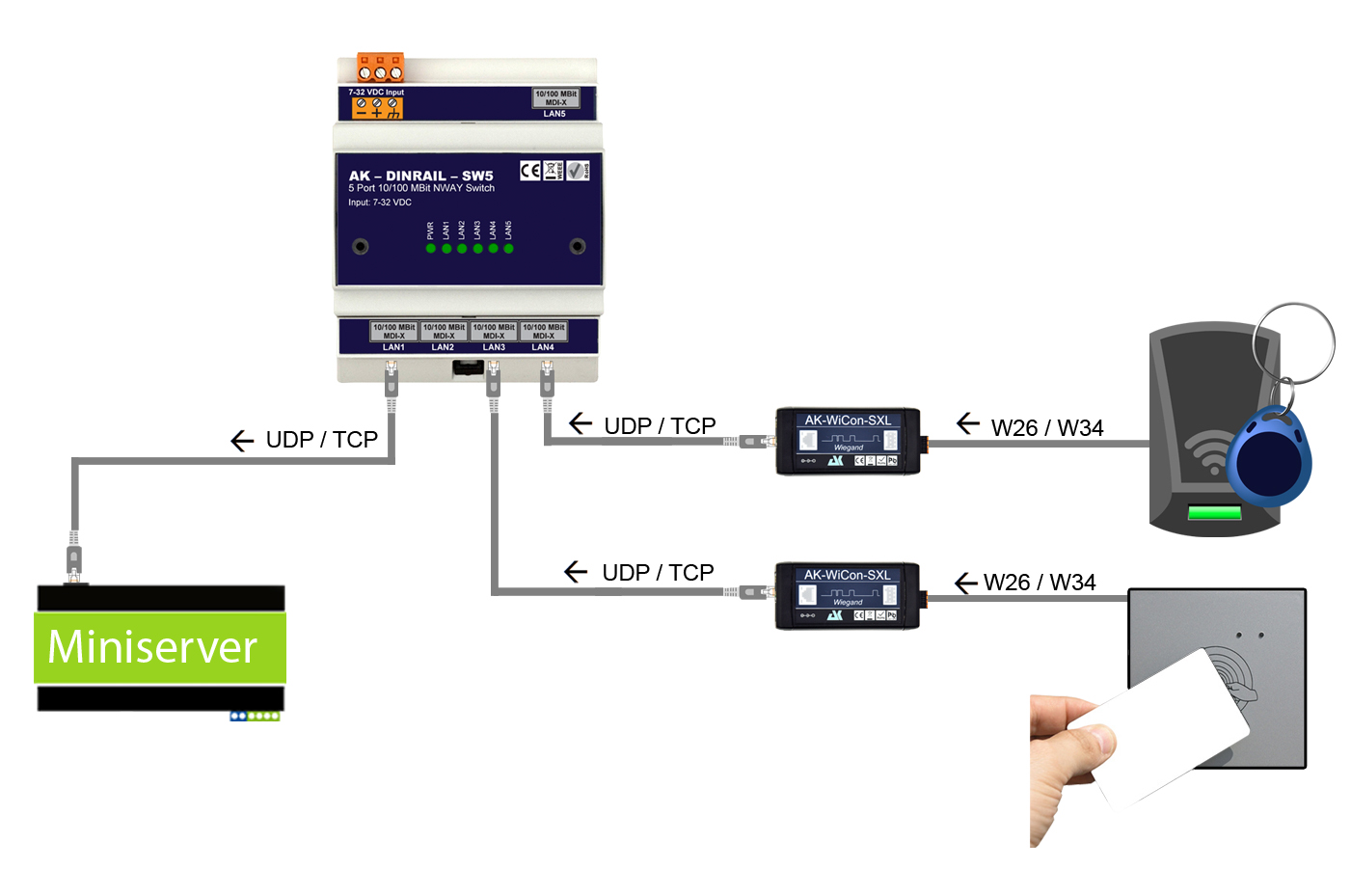

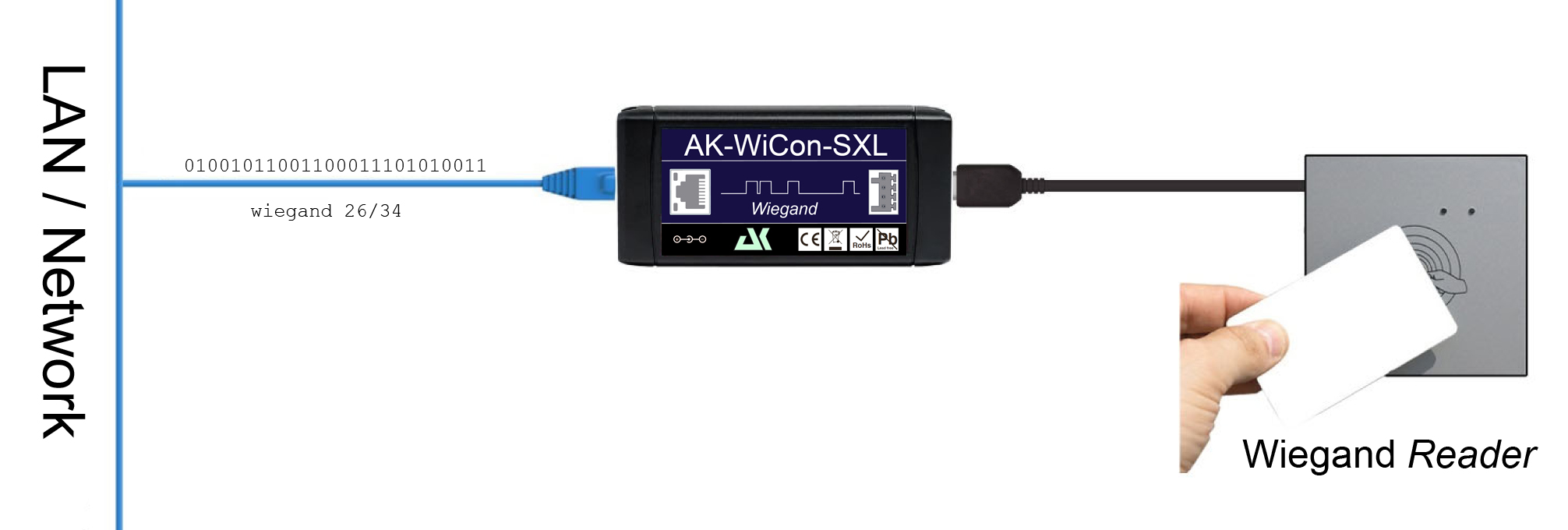

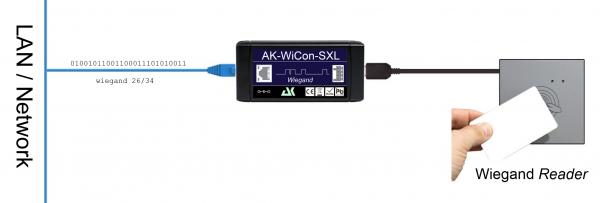

Without system drivers you can now integrate Wiegand input devices like RFID readers, card readers etc. into a network. The only requirement is that your Wiegand device supports Wiegand 26 and 34 bit protocol. All input data e.g. RFID data can be queried or sent directly via TCP/IP. In addition, the data connection can be secured against unauthorized access by third parties using the integrated SSL/TLS data encryption. The customizable web interface also allows you to integrate your personal website.


• Dimensions:
40 x 21 x 82 mm (BxHxL)

• Case:
Shockproof plastic

• Weight:
37 Gramm

• Temperature range:
-40°C .. + 70°C

• Standards
CE / WEEE / RoHS-II
EN 55022 Class B
EN 55024 Class A

• Power supply:
-Power supply +12V, 1A
-Optional PowerOverEthernet IEEE802.3af

• Interfaces / Connectors:

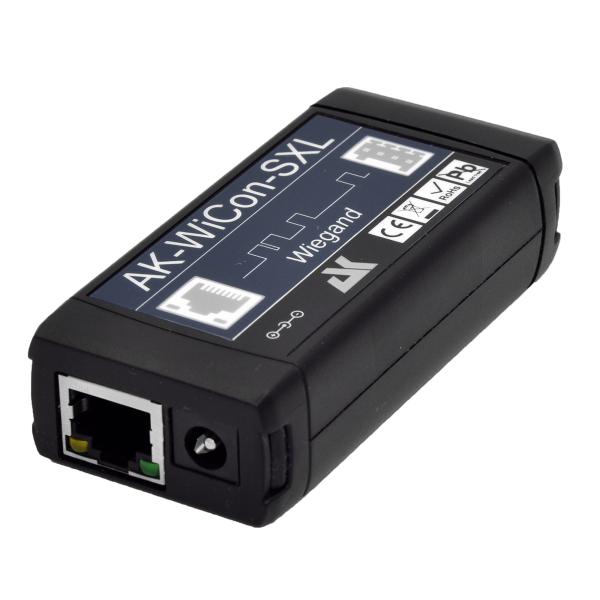

1 x Ethernet RJ45

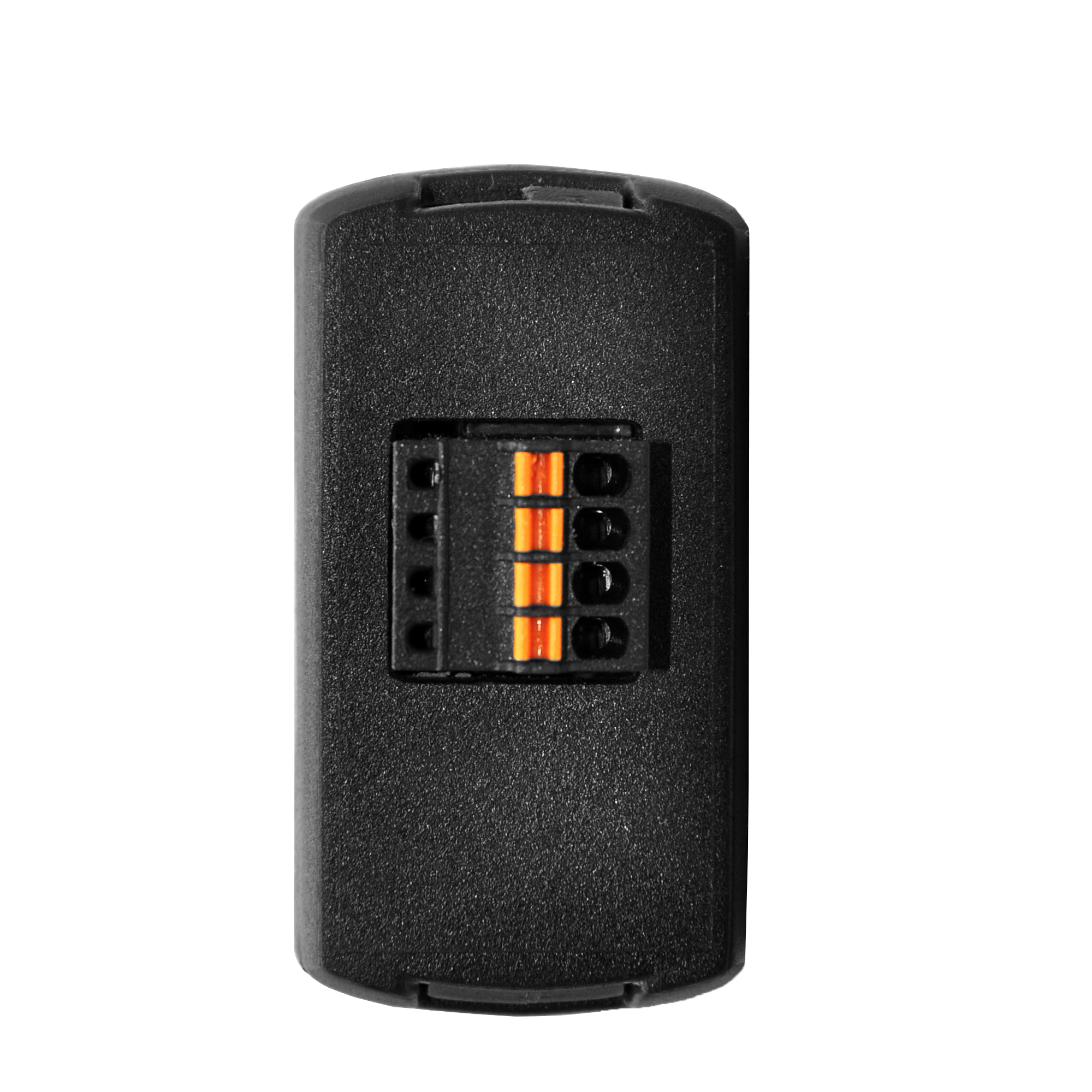

1 x 4 pin connector for Wiegand data lines
• Ethernet (M-DIX)
10 Half Duplex
10 Full Duplex
100 Half Duplex
100 Full Duplex
AutoSensing

• Wiegand
26 Bit format
34 Bit format
